Description
The FX2100 was the first gauged developed by SolveTech over 30 years ago for a plastic film application. It was our original product that helped develop our technology.

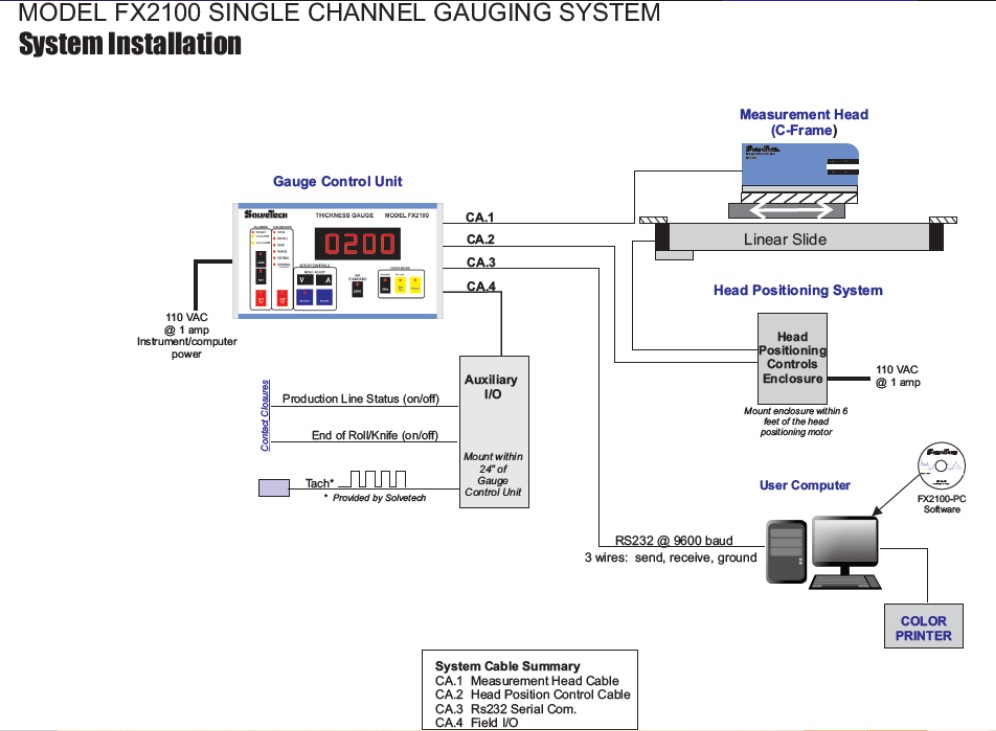

System OVERVIEW

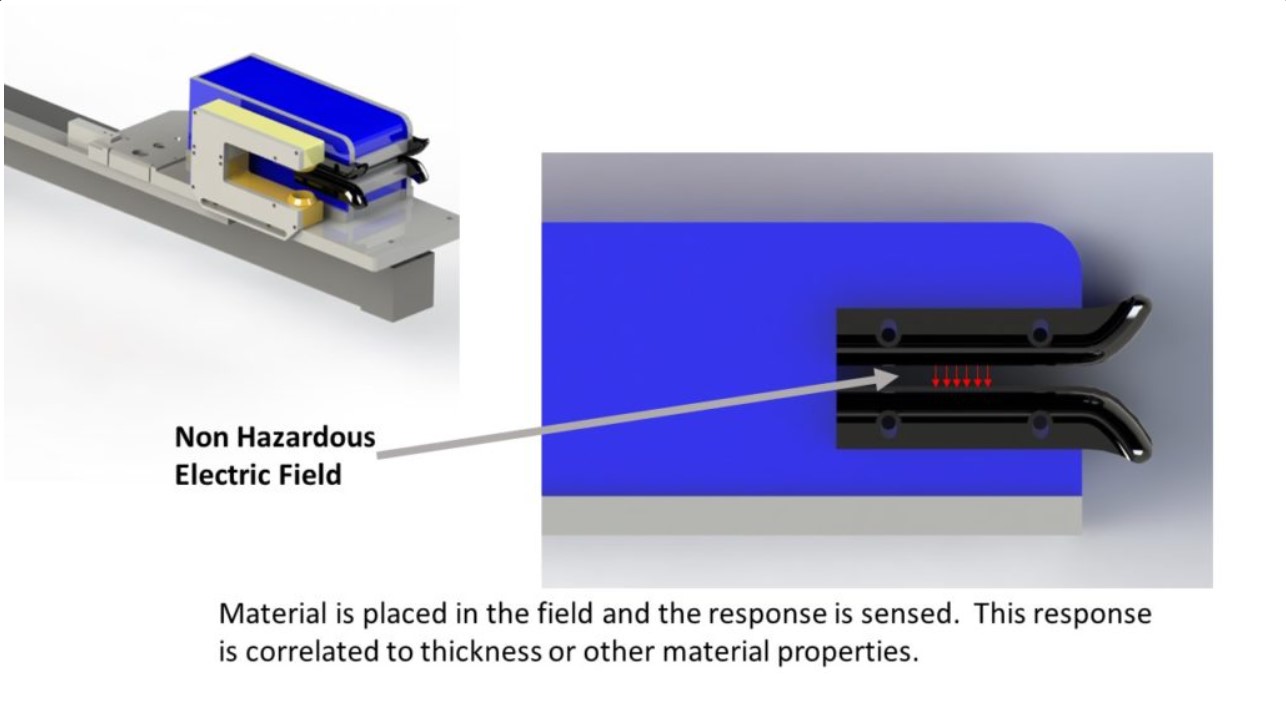

- Measurement: Non-contact and non-nuclear

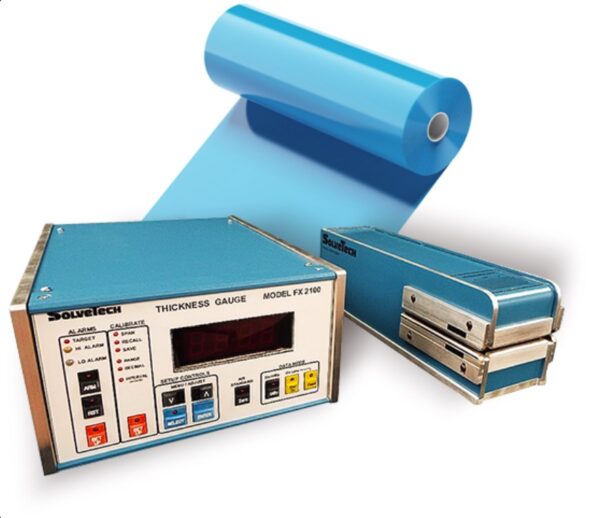

- Gauge Control Unit: Provides power and signal conditioning for measurement head with large, 1″ digital readout. Alarm controls and calibration set-up.

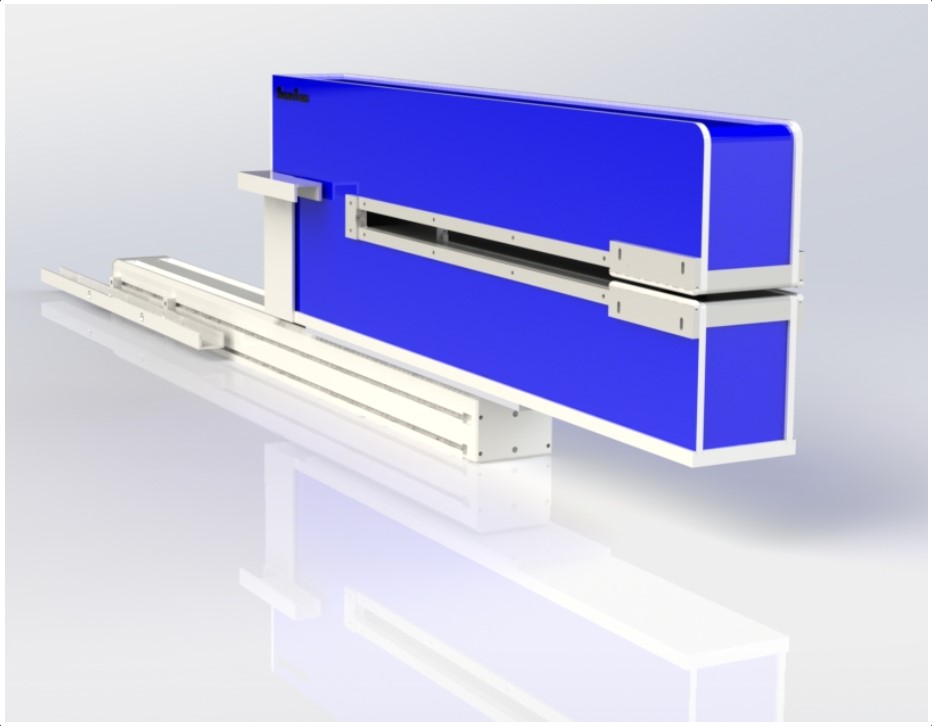

- Head Positioning System (optional): A linear slide and associated controls. Automatically positions the Measurement Head for measurement or moves it off line for start-up operations. Automatically re-zeroes the gauge head at a programmed time interval. This feature is especially important for high-accuracy applications.

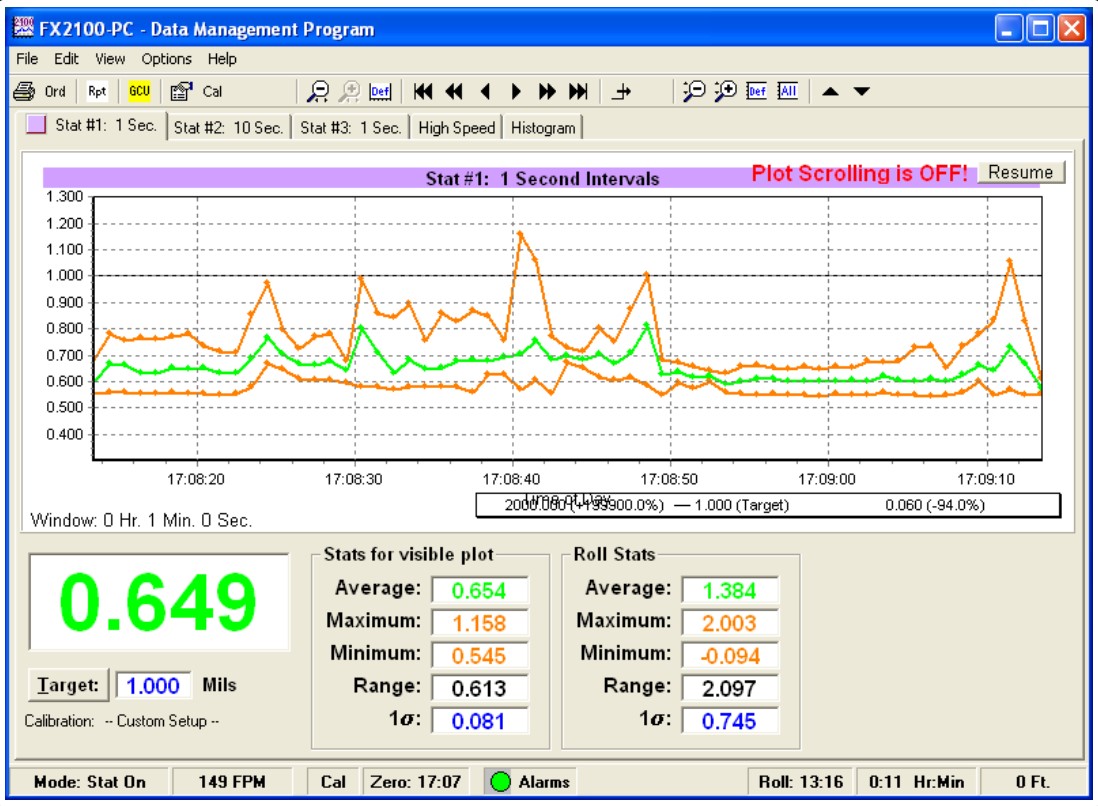

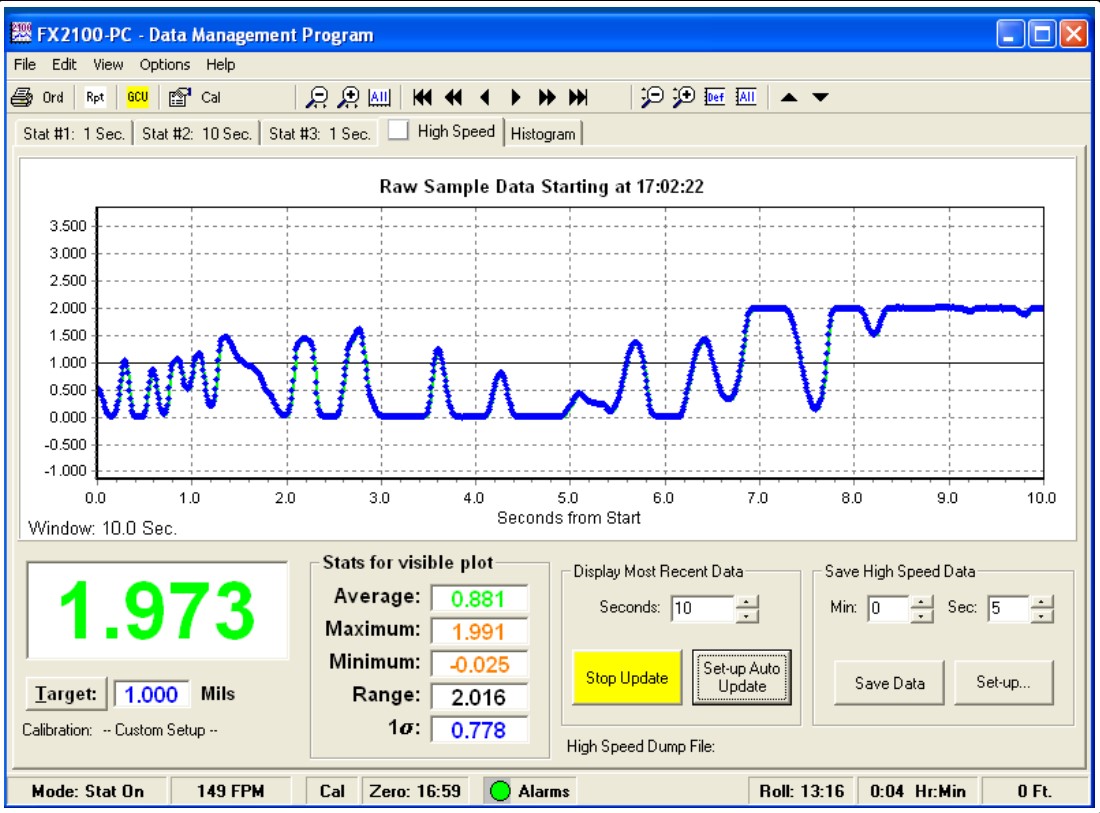

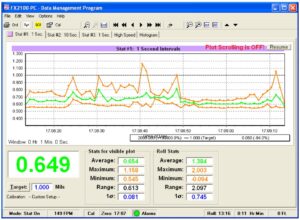

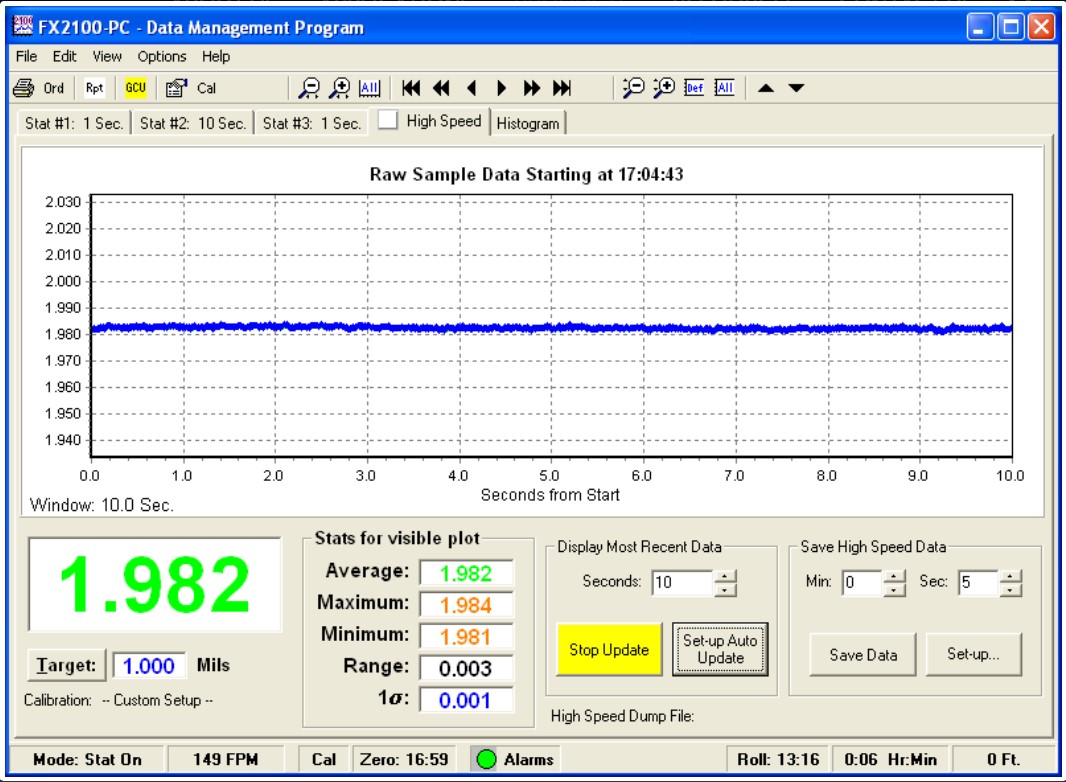

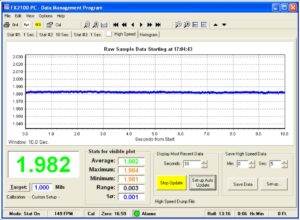

- Software Package (optional): Bring the enormous value of your PC in to the picture with our Windows-based software package to provide you with Strip Charts, Trend Charts, Statistics, Roll Reports, Recipe and Calibration Management, and more.
Features Content
CUSTOM, NON-Contact THICKNESS Gauging Systems
The FX2100 Gauging Systems has a single measurement zone, and can measure nonconductive materials like platic film, nonwovens and coatings on these materials. The size of this zone is customizable and can be designed to match your application. The device can measure the thickness or basis weight of the material.
SolveTech’s FX2100 Gauging System Applications include:
- Machine Direction Gauging
- Narrow Web Monitoring
- Control-based on edge reading
- Monitoring a Single Area
FEATURES
- Accurate to 0.1% to 1% if material thickness (typically 0.01 Mils/0.25 microns or better)
- High Speed (0.01 Sec) Readings
- NIST Traceable Calibration
- Highly Stable
- Industrially Durable.
Technical Indexes Content
HEADS GALORE
Only SolveTech can provide you with a wide range of customized head geometries. All heads are C-Frame construction. Design variable include:
- Throat depth – up to 24 inches
- Gap – up to 1 inch (0.2″ typical)
- Footprint size and shape – from 1/8″ square. UP to 4″ x 5″ (1″ x 2″ typical)
