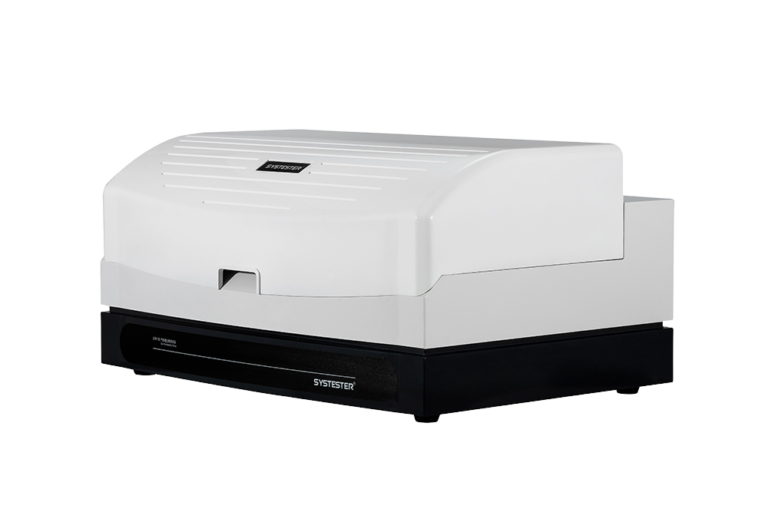

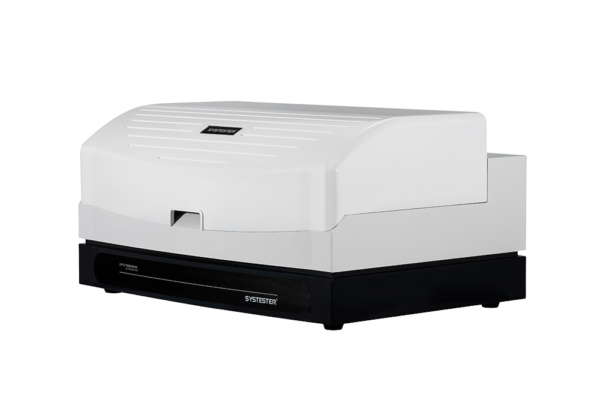

GTR 721 Gas Permeability Tester

GTR 721 is based on the differential pressure method, and is professionally applicable to the determination of gas transmission rate as well as solubility coefficient, diffusion coefficient and permeability coefficient of plastic films, laminated films, high barrier materials, sheeting, metal foils, rubber, tires and permeable membranes.

Description

GTR 721 is based on the differential pressure method, and is professionally applicable to the determination of gas transmission rate as well as solubility coefficient, diffusion coefficient and permeability coefficient of plastic films, laminated films, high barrier materials, sheeting, metal foils, rubber, tires and permeable membranes.

Application Content

GTR 721 is based on the differential pressure method, and is professionally applicable to the determination of gas transmission rate as well as solubility coefficient, diffusion coefficient and permeability coefficient of plastic films, laminated films, high barrier materials, sheeting, metal foils, rubber, tires and permeable membranes.

Features Content

  • Vacuum differential pressure method
  • Built in embedded system with 24bit Δ-Σ AD, remote maintenance and upgrade
  • One-Click start a test and test automatically stop, no any manual operation is required during
  • the process until the end of the test
  • Do NOT need to preset any test parameters before a test, zero operation experience
  • requirements, proprietary technology
  • 3 specimens test simultaneously and independently
  • According to the test state, the vacuum pump starts and stops automatically, do NOT need
  • manual operation
  • Computer control, multiple test modes: Increment, proportional and intelligent
  • The temperatures of chambers which hollow inside and with circulating water are stable, high
  • precision and wide range, 3 chambers with independent temperature sensors to monitor
  • Test under various RH conditions with Humidity generator (optional)
  • Built in environment temperature and humidity sensor
  • Permeability coefficient ,solubility coefficient and diffusion coefficient test
  • Various curves display: chambers temperature, test pressure, transmission rates, etc
  • Traceable reference film calibration
  • Supports DSM system (DSM, lab data management system)

No content available.

Technical Indexes Content

Test range: 0.05- 190,000 cm3/m2·24h·0.1MPa (Standard)
Resolution: 0.001cm3/m2·24h·0.1MPa
Samples: 3, independent
Vacuum accuracy: 0.1Pa
Temperature range: 5C- 95C
Temperature accuracy: ±0.1C
Humidity range: 0%RH,35%RH-90%RH,100%RH (optional)
Humidity accuracy: ±1%RH (optional)
Sample thickness: less 3mm
Sample size: >= 150mm * 94mm
Test area: 48cm2
Test gas: O2, N2, CO2, He, etc
Differential pressure:-0.1MPa- 0.1MPa
Gas interface: Ф8mm
Dimension: 730mm(L) * 510mm(W) * 350mm(H)
Power supply: AC 220V 50Hz
Net wt. : 63kg

Standards Content

ASTM D1434, ISO 15105-1,ISO 2556,GB/T 1038-2000,JIS 7126-1,YBB 00082003

Configuration Content

Standard

Main Unit, Computer, G-TRANS Software, Temperature Controller, Vacuum Pump, Vacuum Pump Control Model, Tank Regulator, PCIE Card, Communication Cable, Sample Cutter, Vacuum Grease.

Optional

Humidity Generator, Reference Film, Vacuum Grease, Sample Cutter, DSM system.

Download Content

GTR 721 Gas Perm (VACUUM DIFFERENTIAL PRESSURE) – 3 Specimens – G-TRANS Software

NOTE: Specifications are subject to change without prior notice.
