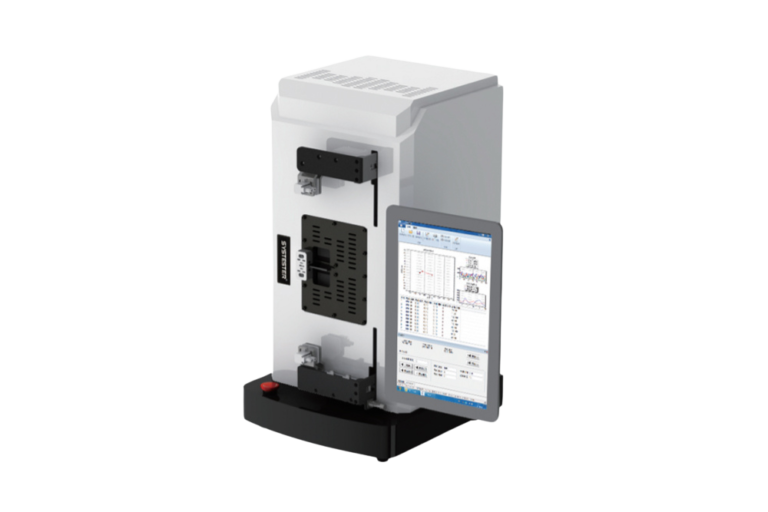

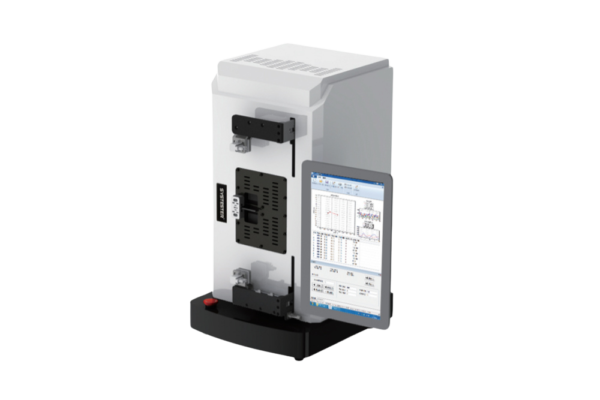

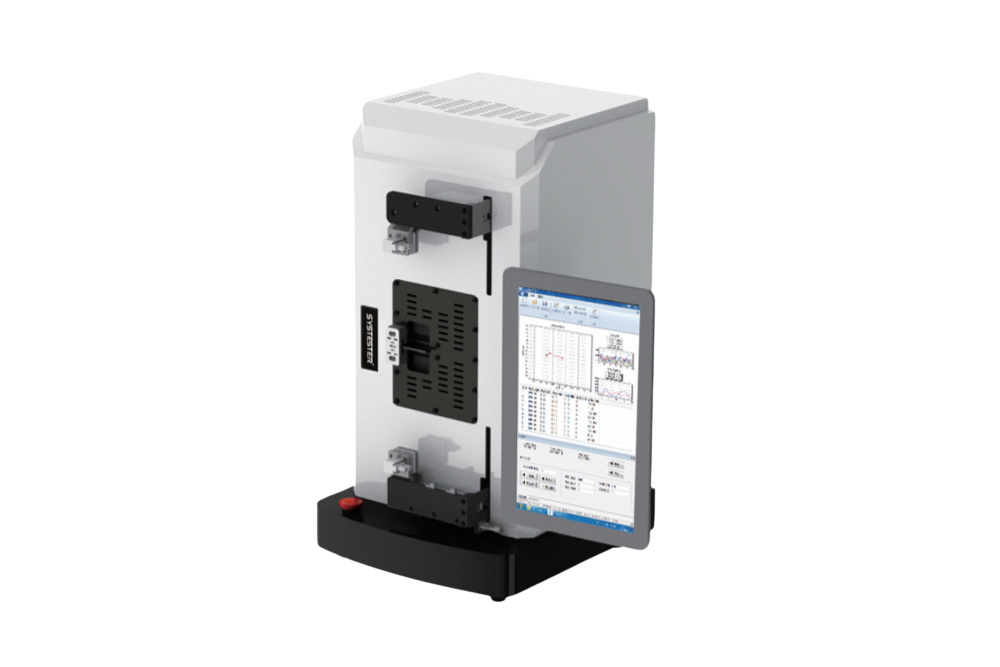

The HTT-3701 Hot Tack Tester is a highly accurate instrument for hot tack testing and heat seal strength test of flexible packaging materials, testing capabilities include hot tack, heat sealing and sealing strength, can provide critical application parameters needed to determine ideal sealing conditions for packaging films.
The HTT-3701 Hot Tack Tester is a highly accurate instrument for hot tack testing and heat seal strength test of flexible packaging materials, testing capabilities include hot tack, heat sealing and sealing strength, can provide critical application parameters needed to determine ideal sealing conditions for packaging films.
The HTT-3701 Hot Tack Tester is a highly accurate instrument for hot tack testing and heat seal strength test of flexible packaging materials, testing capabilities include hot tack, heat sealing and sealing strength, can provide critical application parameters needed to determine ideal sealing conditions for packaging films.
No content available.
Sealing temperature: ambient – 300℃
Resolution: ±0.1℃
Accuracy: ±0.2℃
Sealing jaws: 10mm × 40mm Standard (5mm,15mm optional)
Sealing pressure: 0.1N/mm2 – 4.0N/mm2
Sealing pressure sensor: strain gauge
Sealing pressure resolution: 0.01kgf
Sealing pressure accuracy: 0.09kgf
Sealing time: 0.1s~999.9s
Sealing time resolution: 10 ms
Sealing time control: ±20ms
Cooling time: 0.01s – 999.9s
Hot tack force: 0-100N(standard)
0-50N(optional)
0-250N(optional)
0-500N(optional)
Hot tack force accuracy: Max0.01%FS
Peeling speed: 0.5mm/s – 3000mm/s
Peeling control: servo motor controlled
Sample length: greater than 300mm
Sample width: less than 40mm(standard)
Sample thickness: less than 1mm(flexible)
Gas supply: 5bar – 8bar(self-provided)
Gas interface: Ф6mm
Power: 85-250VAC, 50Hz/60Hz
Dimension: 390mm (L)×420 mm (D)×730 mm (H)
Weight: 79kg
ASTM F1921, ASTM F2029, DIN 55571
main unit, computer, foot pedal

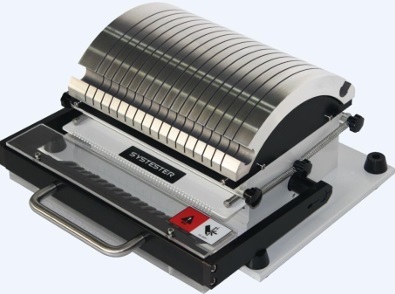

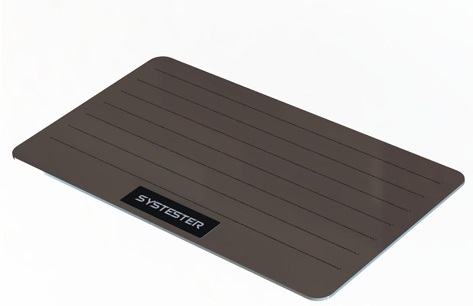

strip sample cutter, sample plate、high temperature cloth
Sample: flexible film
Strip number: 16pcs@15mm
Strip width: 10mm,15mm,20mm,25.4mm(on demand)
Strip length: 230mm, 350mm (optional)
Strip thickness: less 1mm
Dimension: 415 mm(L)× 290mm(W)× 213 mm(H)
Weight: 28kg
Sample: flexible film
Strip number: 6pcs@25mm
Strip width: 10mm,15mm,20mm,25.4mm(on demand)
Strip length: 350mm (optional)
Strip thickness: less 1mm
Dimension : 380mm(L)× 220mm(W)×3 mm(H)
Weight: 1.9kg
