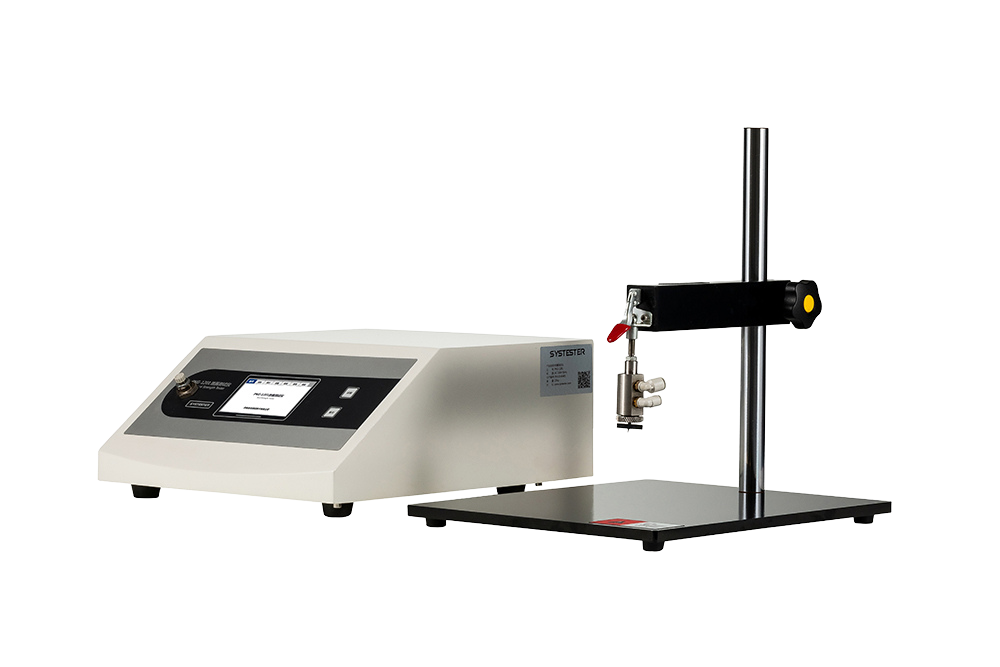

For determining the ability of packages to withstand internal pressurization. For determining the minimum burst strength of a seal placed around the perimeter of a flexible package as it is internally pressurized and enclosed within restraining plates. For the measurement of leaks in nonporous film, foil, or laminate flexible pouches and foil sealed trays, which…
For determining the ability of packages to withstand internal pressurization. For determining the minimum burst strength of a seal placed around the perimeter of a flexible package as it is internally pressurized and enclosed within restraining plates. For the measurement of leaks in nonporous film, foil, or laminate flexible pouches and foil sealed trays, which may be empty or enclose solid product.
For determining the ability of packages to withstand internal pressurization. For determining the minimum burst strength of a seal placed around the perimeter of a flexible package as it is internally pressurized and enclosed within restraining plates. For the measurement of leaks in nonporous film, foil, or laminate flexible pouches and foil sealed trays, which may be empty or enclose solid product.
No content available.
Testing range: 0.5 ~ 800kPa; accuracy: 0.3%FS
4~1600kPa; accuracy: 0.5%FS (optional)
Gas source: 0.4MPa ~ 0.7MPa (self-provide)
Main unit dimension: 345mm(L) × 410 mm(B) × 170mm(H)
Package fixture size: 300 mm(L) × 350mm(B) ×330mm(H)
Power supply: AC 220V 50Hz
Net weight: 25kg
ASTM F2054, ASTM F1140, ASTM F2095, ISO 11607-1, ISO 11607-2, GB 18454、GB 19741, GB10440, GB 17447, GB/T 17876, GB/T 10004, GB/T 10005, BB/T 0003, BB/T 0025, QB/T 1871, YBB 00162002, YBB 00252005
main unit, package test fixture.
open package test fixture (width 235mm), restraining plates, bottle cap test fixture, hose test fixture.
