Description
For determining the ability of pressure-sensitive tapes to remain adhered under constant load applied parallel to the surface of the tape and substrate.

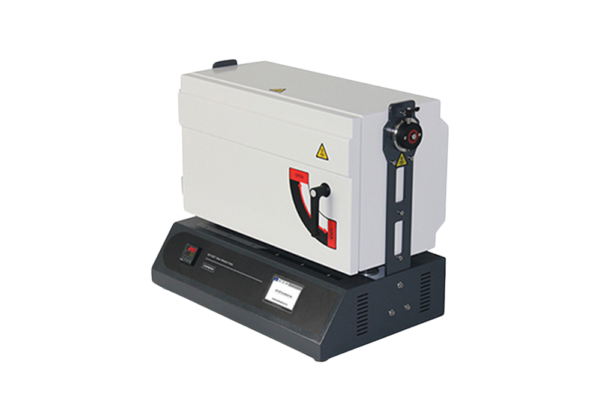

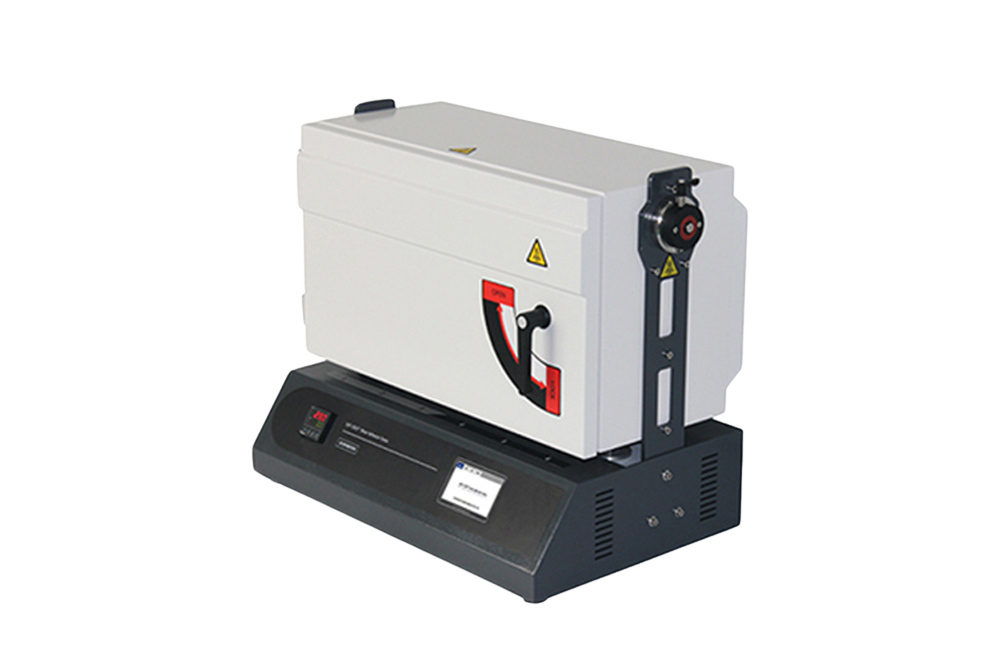

SAT-1302T Shear Adhesion Tester
For determining the ability of pressure-sensitive tapes to remain adhered under constant load applied parallel to the surface of the tape and substrate.
Application Content
For determining the ability of pressure-sensitive tapes to remain adhered under constant load applied parallel to the surface of the tape and substrate.
Features Content
- Embedded system, easy to remote maintenance and upgrade
- Owntechnology design
- Touch screen operation
- Real color TFT LCD display
- 6 independent test stations in one
- Embedded proximity sensor, auto start test and auto stop
- Precise time control along with wide timer range
- Designed based on various standards
- Various temperature test
No content available.
Technical Indexes Content
Temperature Range: room temperature–200℃ (standard)
Temperature Accuracy: 0.1℃
Test Mass: 1000g (triangle hook included)
4500g (optional)
Timer Range: 0– 10,000h
Timer Step: 1sec
Test Panel: 125mm (L)×50mm (B)×2.0mm (D)
125mm (L)×50mm (B)×2.0mm (D) with 120°bend (optional)
Test Station: 6, independent
Roller Weight: 2000g ± 50g
Dimension: 696mm (L)×510mm (B)×557mm (H)
Power: AC 220V 50Hz
Net Weight: 67kg
Standards Content
ASTM D3654, PSTC 107, GB 4851, JIS Z0237
Configuration Content
Standard Configuration
mainframe, roller, test panel(stainless steel), test mass, power line.
Optional
load mass(non-standard).
