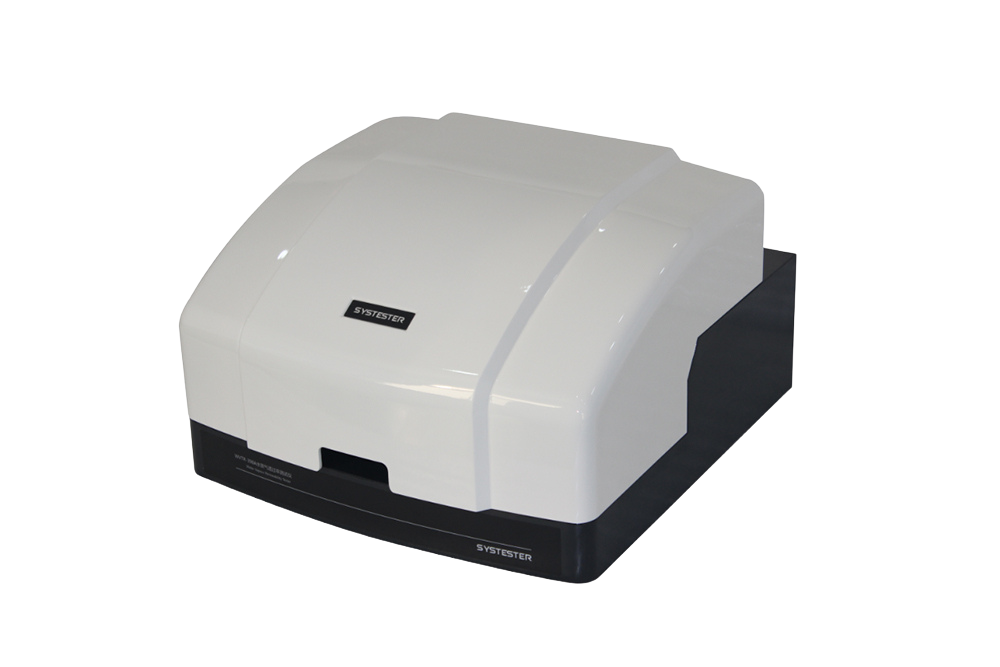

GTR-7006 Gas Permeability Tester

GTR-7006 is based on the differential pressure method, and is professionally applicable to the determination of gas transmission rate as well as solubility coefficient, diffusion coefficient and permeability coefficient of plastic films, laminated films, high barrier materials, sheeting, metal foils, rubber, tires and permeable membranes.

Description

GTR-7006 is based on the differential pressure method, and is professionally applicable to the determination of gas transmission rate as well as solubility coefficient, diffusion coefficient and permeability coefficient of plastic films, laminated films, high barrier materials, sheeting, metal foils, rubber, tires and permeable membranes.

Application Content

GTR-7006 is based on the differential pressure method, and is professionally applicable to the determination of gas transmission rate as well as solubility coefficient, diffusion coefficient and permeability coefficient of plastic films, laminated films, high barrier materials, sheeting, metal foils, rubber, tires and permeable membranes.

Features Content

  • Vacuum differential pressure method
  • Embedded system, own technology
  • 6 specimens test simultaneously and independently
  • Computer control, auto start, auto stop, auto save
  • One-button test, fully automatic, AI technology embedded in
  • High accuracy vacuum sensors embedded in
  • 6 Chambers with independent temperature sensors
  • Test under various RH conditions with Humidity generator (optional)
  • Environment temperature and humidity sensor inside
  • Permeability coefficient, solubility coefficient and diffusion coefficient test
  • 6 Chambers with water bath temperature control technology
  • Unit based on embedded system,24bit Δ-Σ AD
  • Multiple test modes optional
  • Temperature, humidity, pressure curves display, curves overlaying display
  • Traceable reference film calibration
  • Supports DSM system (DSM, lab data management system)

No content available.

Technical Indexes Content

Test range: 0.01- 190,000 cm3/m2·24h·0.1MPa (Standard)
Resolution: 0.001 cm3/m2·24h·0.1MPa
Samples: 6, independent
Vacuum accuracy: 0.1Pa
Temperature range: 5C-95C
Temperature accuracy: ±0.1C
Humidity range: 0%RH,35%RH-90%RH,100%RH (optional)
Humidity accuracy: ±1%RH (optional)
Sample thickness: less 3mm
Sample size: >= 150mm * 94mm
Test area: 48cm2
Test gas: O2, N2, CO2, He, etc (self-provide)
Differential pressure:-0.1MPa- 0.1MPa
Gas interface: Ф8mm
Dimension: 650mm(L) * 700mm(W) * 420mm(H)
Power supply: AC 220V 50Hz
Net wt.: 96kg

Standards Content

ASTM D1434, ISO 15105-1,ISO 2556,GB/T 1038-2000,JIS 7126-1,YBB 00082003

Configuration Content

Delivery

Main unit, computer, G-TRANS software, temperature controller, vacuum pump, tank regulator, PCIE card, communication cable, sample cutter, vacuum grease.

Optional

Humidity generator, reference film, vacuum grease, sample cutter, DSM system.

Download Content

GTR-7006 Gas Permeability Tester

NOTE: Specifications are subject to change without prior notice.
