Description
It is used for observing the number and size of pinholes in aluminum foil under the specified environment and light source.

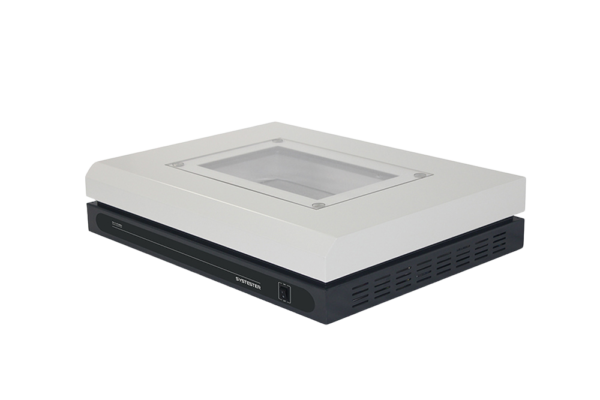

PIN-01 Pinhole Inspection Box
It is used for observing the number and size of pinholes in aluminum foil under the specified environment and light source.
Application Content
It is used for observing the number and size of pinholes in aluminum foil under the specified environment and light source.
Features Content
- Original Philips light source
- Diffuse reflection design
No content available.
Technical Indexes Content
Observation size: 400mm×250mm
Application environment illumination: 20Lux~50Lux
Power: ≥ 30W
Eyepiece magnification: 10X
Objective magnification: 10X
Measure the smallest division value: 0.01mm
Power supply: AC 220V 50Hz
Dimension: 800mm(L)×600mm(B)×300mm(H)
Net weight: 39kg
Standards Content
YBB00152002-2015、GB/T22638.2-2008
Configuration Content
Standard Configuration
Mainframe, Microscope
