Description
For the professional test of peeling force and bond strength Of various kinds of flexible laminated plastics or equivalents.

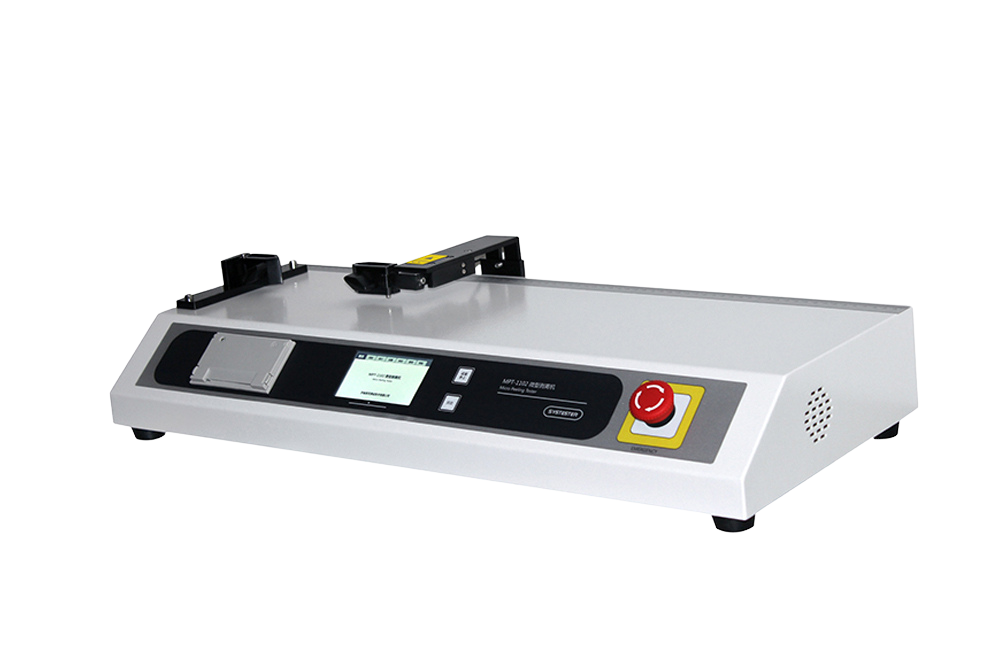

MPT-1102 Micro Peeling Tester
For the professional test of peeling force and bond strength Of various kinds of flexible laminated plastics or equivalents.
Application Content
For the professional test of peeling force and bond strength Of various kinds of flexible laminated plastics or equivalents.
Features Content
- Professional in peeling force and bond strength test.
- Designed based on various standards.
- 90 peel, 180 peel, T-type peel etc.
- Touch screen operation, real color TFT LCD display.
- Own technology.
- High accuracy load cell built-in.
- Test speed can be preset freely on touch screen.
- Micro-printer prints mini-report.
- Different load cell range can be selectable.
- Various professional grips can be optional.
- Overload protection.
- RS232 communication port.
- Professional computer software support.(optional)
No content available.
Technical Indexes Content
Load cell range: 5N, 10N, 30N, 50N, 200N
Accuracy: 0.03% FSMAX
Test speed: 1mm/min- 500mm/min
Speed accuracy: 1mm/min
Peeling distance: 470mm
Sample width: 10mm, 15mm, 20mm, 25.4mm, 50mm (optional)
Power supply: AC 220V 50Hz
Consumption: 30W
Dimension: 750mm (L) X 340mm (W) X 120mm (H)
Net weight: 43kg
Standards Content
ASTM D3330, GB/T 25256, GB 8808, GB2792
Configuration Content
Standard
main unit, load cell (5N), peeling grips(30mm).
Optional
professional computer software, 90 peeling fixtures,180 peeling test plates, calibration accessories.
