Description
For determining the ability of pressure-sensitive tapes to remain adhered under constant load applied parallel to the surface of the tape and substrate.

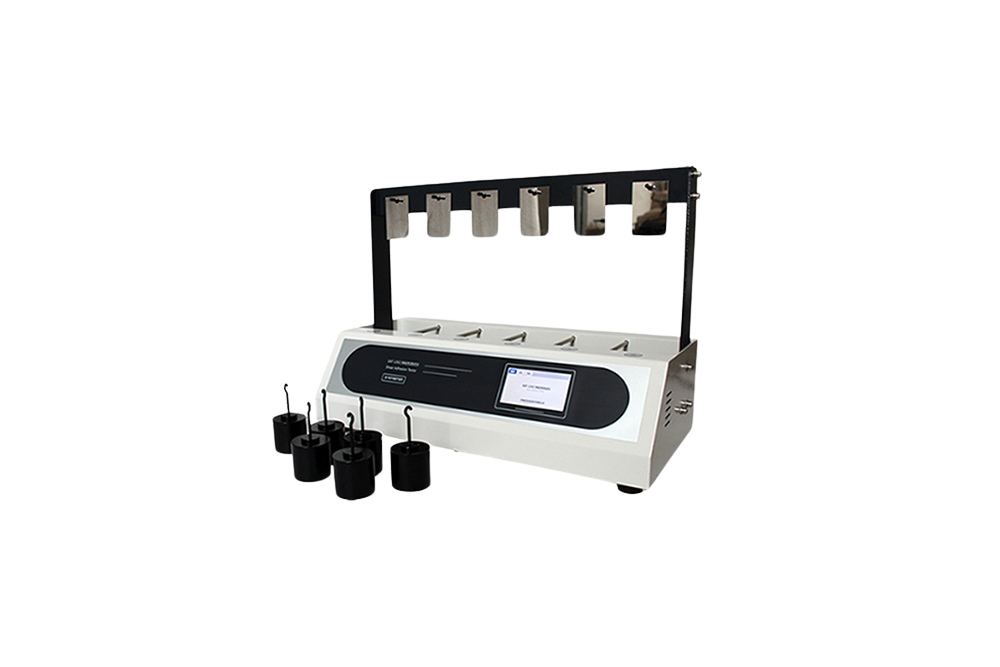

SAT-1302 Shear Adhesive Tester
For determining the ability of pressure-sensitive tapes to remain adhered under constant load applied parallel to the surface of the tape and substrate.
Application Content
For determining the ability of pressure-sensitive tapes to remain adhered under constant load applied parallel to the surface of the tape and substrate.
Features Content
- Embedded system, easy to remote maintenance and upgrade
- Touch screen operation
- Real color TFT LCD display
- 6 independent test stations in one
- Embedded proximity sensor, auto start test and auto stop
- Precise time control along with wide timer range
No content available.
Technical Indexes Content
Load Mass: 1000g ± 10g ( Includes panel weight )
Timer Range: 0– 10,000h
Timer Step: 1sec
Panel Size: 60mm(L)×40mm(B)×2.0mm(D)
Test Station: 6, independent
Roller Weight: 2000g ± 50g
Dimension: 577mm(L)×279mm(B)×388mm(H)
Power: AC (80-240)V (40-66)Hz
Net Weight: 20kg
Standards Content
ASTM D3654, PSTC 107, GB 4851, JIS Z0237
Configuration Content
Standard
main unit, roller, stainless steel panel, load mass, power line.
Optional
load mass(non-standard).
