Description

Single-Step measurement of ColorTransmission Optical Density

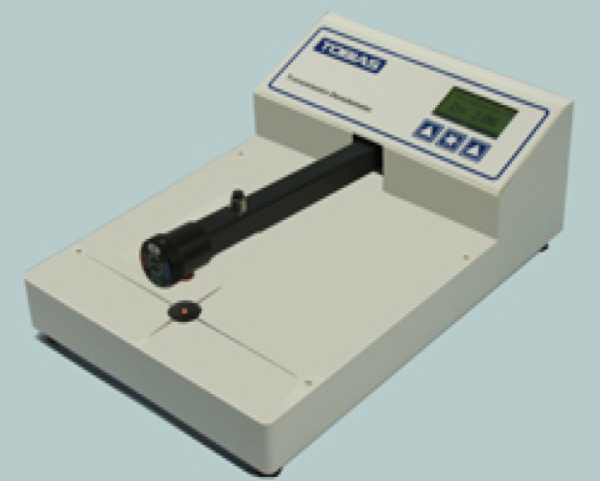

The TBX1000C™ Color TransmissionDensitometer insures consistentprocess control in the manufacture offilms, laminates, and substrates. TheTBX1000C, with Status A (Status M onrequest), measures density and densitydifference of either color or black &white substrate with a great degree ofaccuracy and precision. Status A is usedfor reading positives, such astransparencies and prints. Status M forreading negatives. The unit has thecapability of reading up to three colorfilters, plus visual. Custom filter sets canbe used. The different filters are easilyselected by rotating the knob at the endof the probe. The unit has both an absolute mode and a relative mode, which can be used for comparingthe measured values to a previously stored value for consistent process control. TransmissionDensitometer/Opacity Meter measures and calculates percent opacity, percent transmission, andtransmission optical density. There is no more need to figure the percentages manually. The unit has beendesigned for user convenience and error-free measurement. The data can be uploaded to a spreadsheetvia the USB port using an optional data transfer program (p/n A2128). The TBX2000C™ has all thefeatures of the TBX1000C, plus the additional capability to calculate percent opacity.
