Description
It is used for evaluating the torque retention of continuous thread closures on containers, and measuring the torque required to tighten or unscrew the closure from a container.

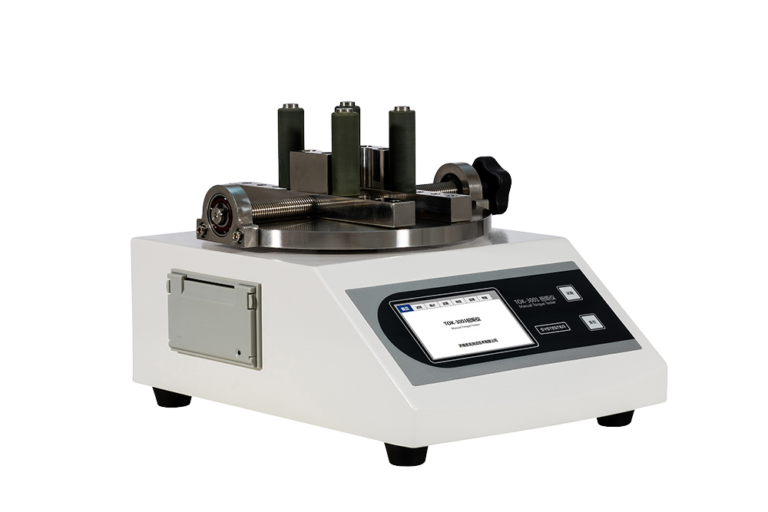

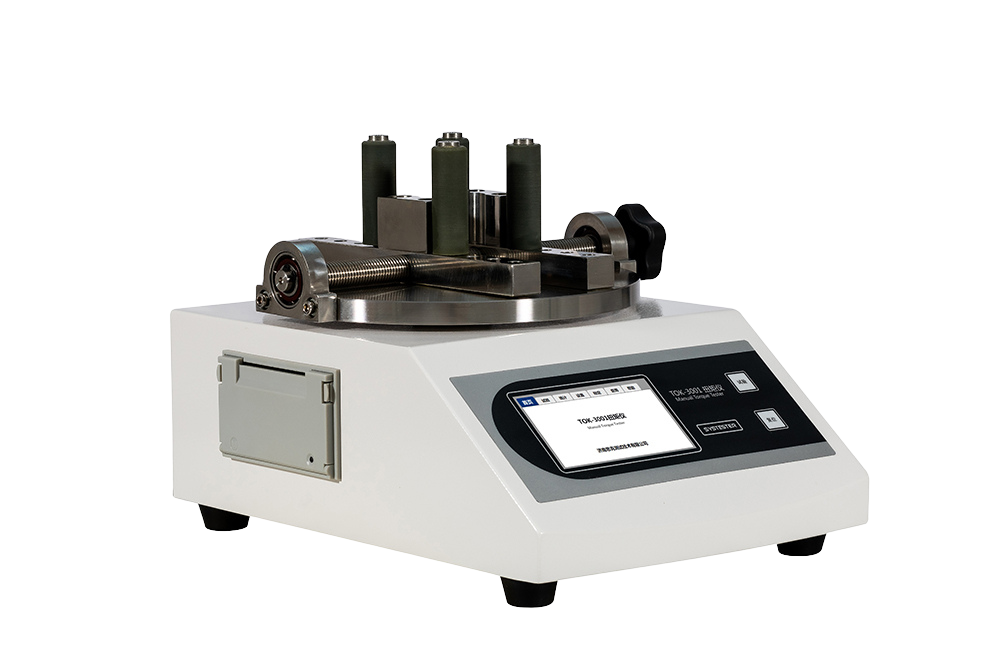

TOK-3001 Manual Torque Tester
It is used for evaluating the torque retention of continuous thread closures on containers, and measuring the torque required to tighten or unscrew the closure from a container.
Application Content
It is used for evaluating the torque retention of continuous thread closures on containers, and measuring the torque required to tighten or unscrew the closure from a container.
Features Content
- Embedded system, easy to remote maintenance and upgrade
- Touch screen operation
- Peak value test, continuous test, limit value test
- Clockwise, un-clockwise test
- Micro-printer prints mini-report
- Real color TFT LCD display
- Torque curve display on LCD screen
- Results statistical calculation(mean, SD, etc)
- Historical data query on touch screen
- Result with multiple units
- Overload warning
- Low power consumption
- RS232 communication port
No content available.
Technical Indexes Content
Range: 20Nm(standard); 40Nm, 50Nm(optional)
Accuracy: 0.3%FS
Resolution: 0.001 Nm
Sample diameter: Ф2mm ~ Ф180mm
Power supply: AC 220V 50Hz
Dimension: 245mm(L) X 340mm(W) X 238mm(H)
Net weight: 20kg
Standards Content
ASTM D2063, ASTM D3198, ASTM D3474, GB/T 17876, BB/T 0025
Configuration Content
Standard
main unit, micro-printer, micro-printer paper
Optional
professional computer software, communication cable, micro-printer paper
